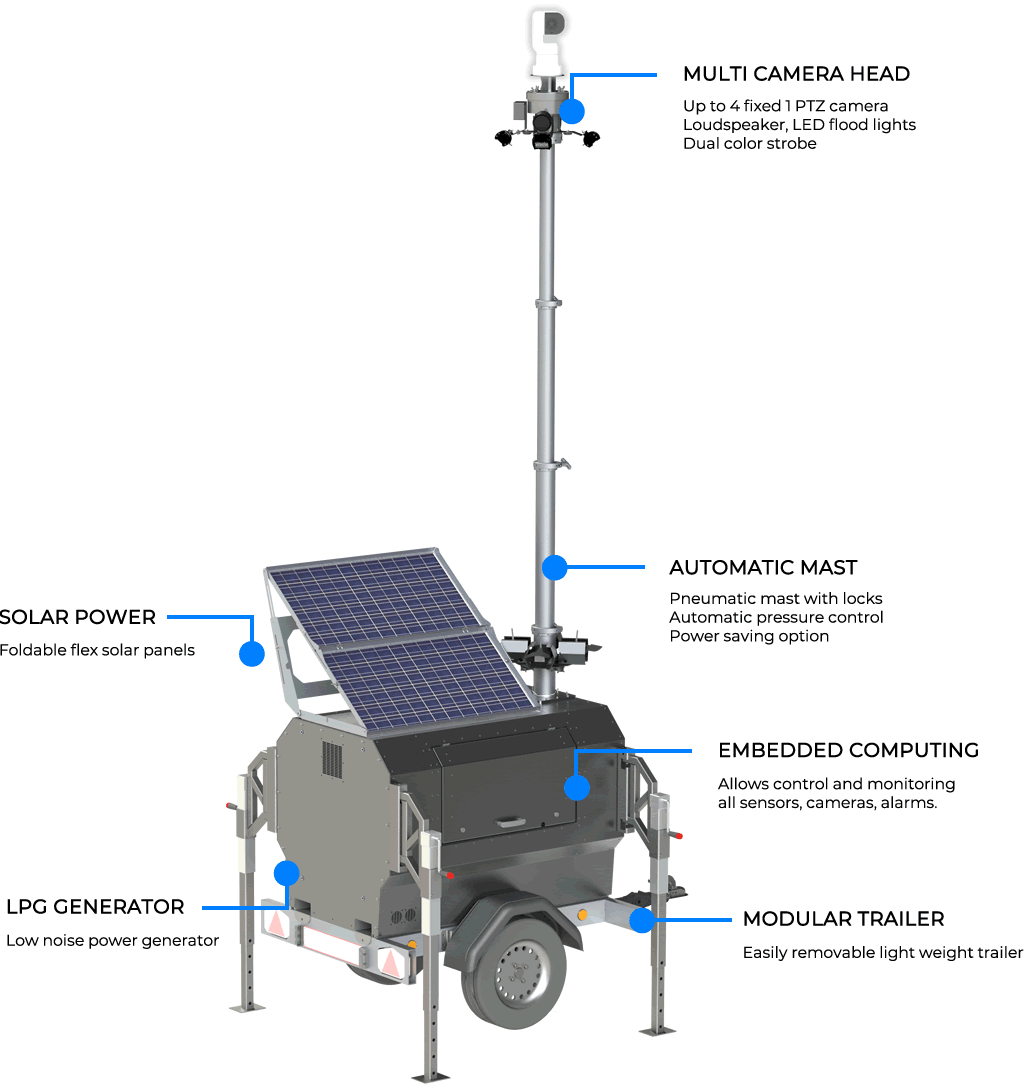

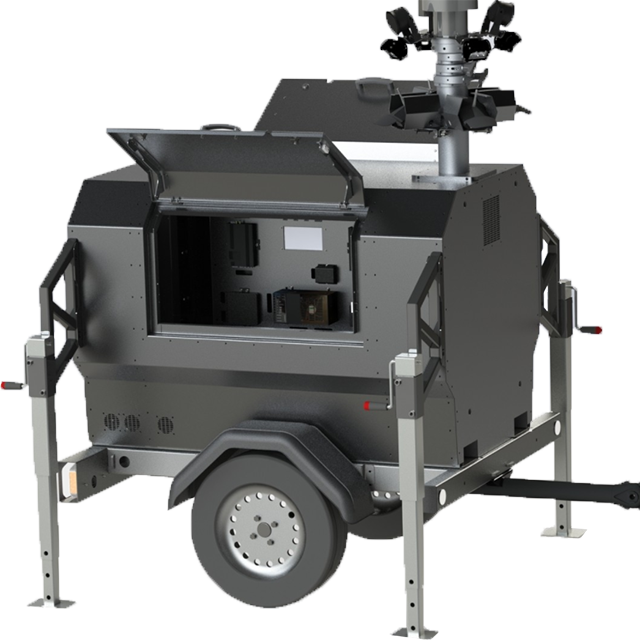

Modular design

  • Rust free aluminium body
  • Solar panels 220W (autonomous power & increase autonomy)
  • Optional wind turbine (400W)

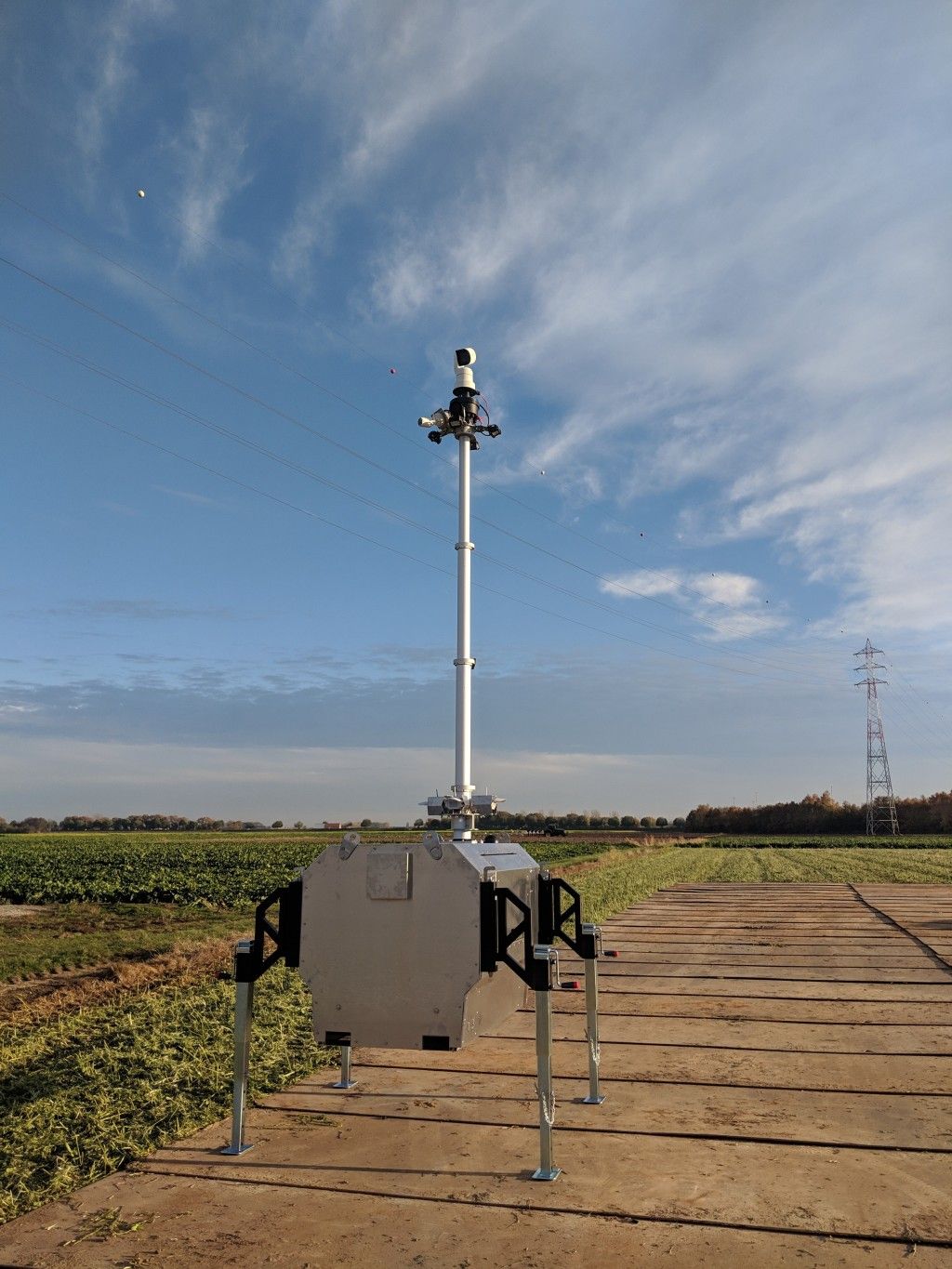

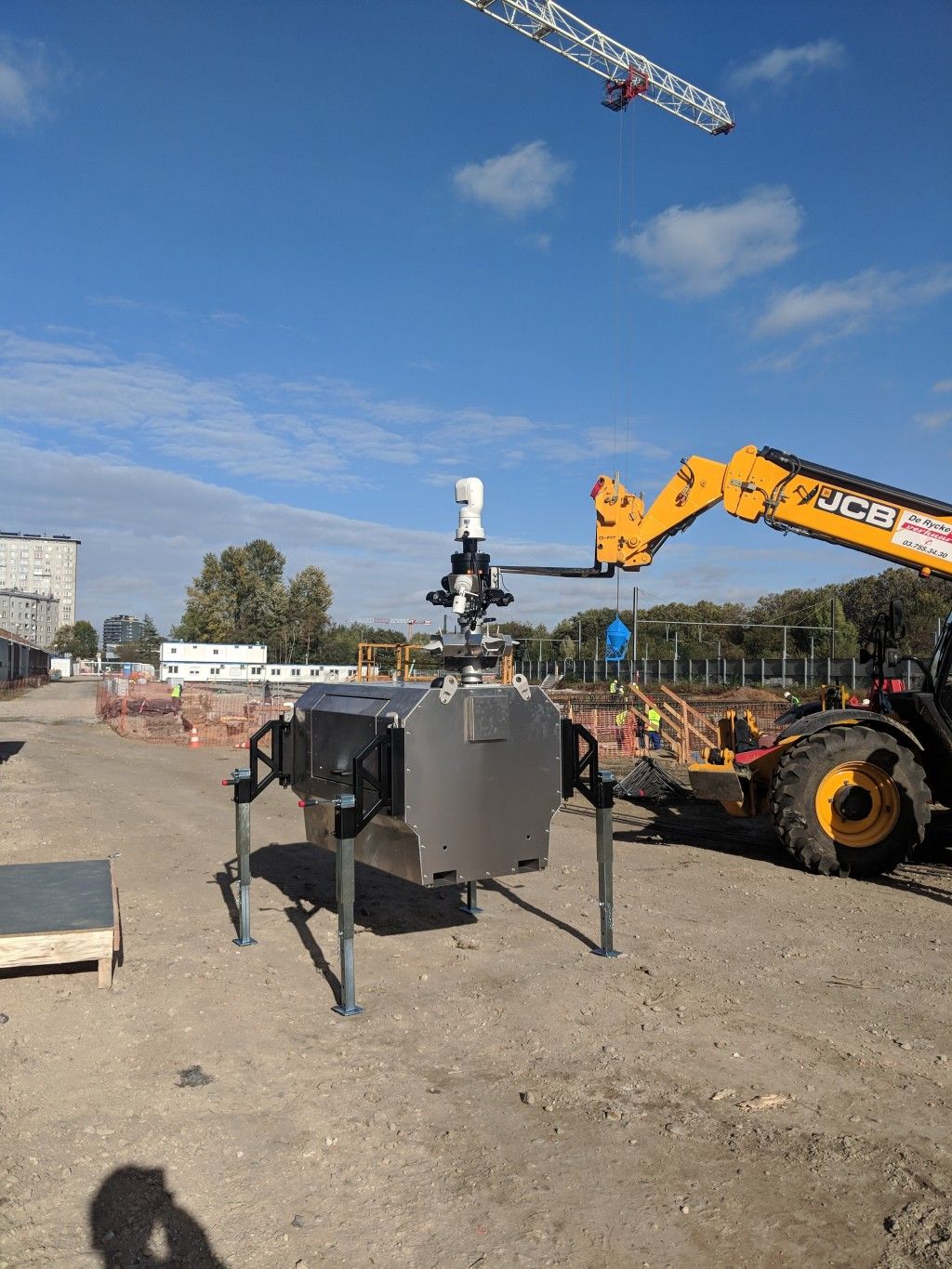

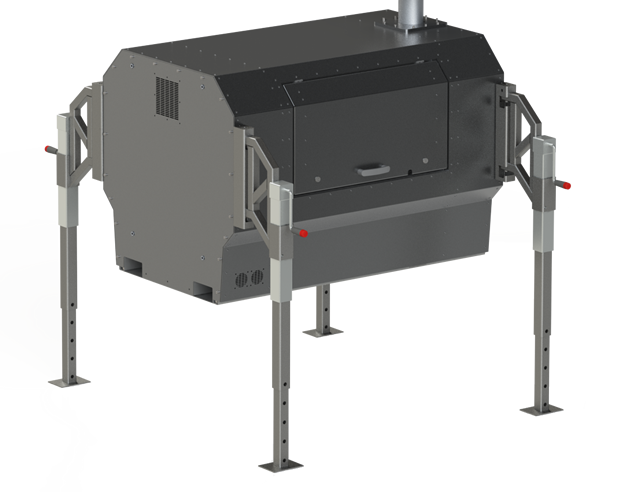

  • Removable feet

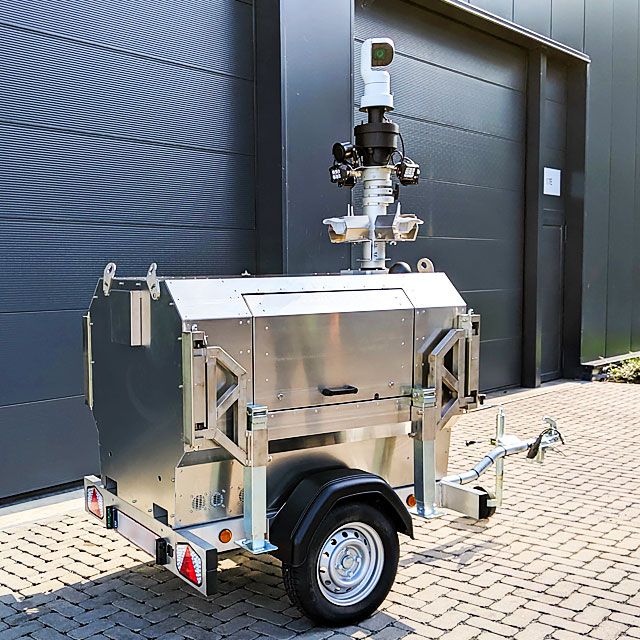

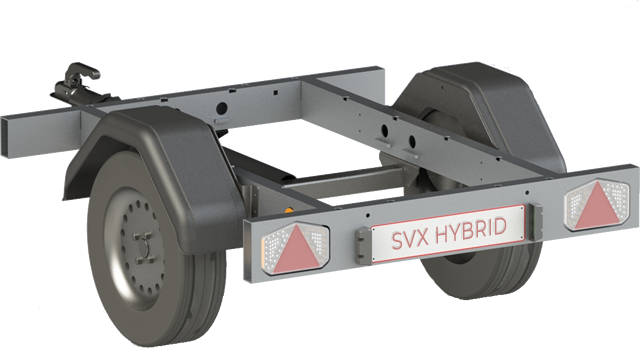

Removable Trailer

  • Rust free aluminium- Lightweight
  • Easy to redeploy
  • Led lights
  • Compatible with all SVX stations

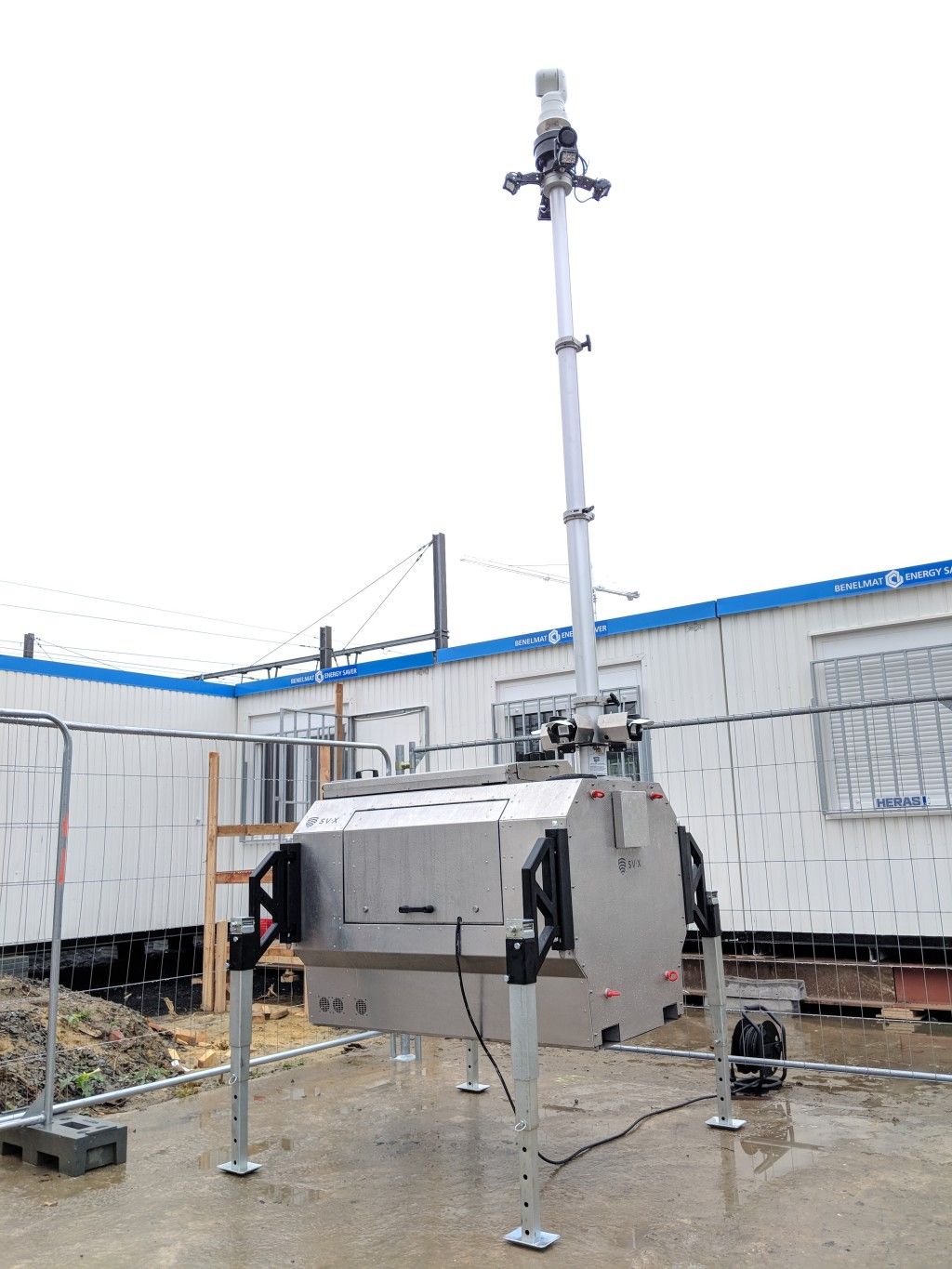

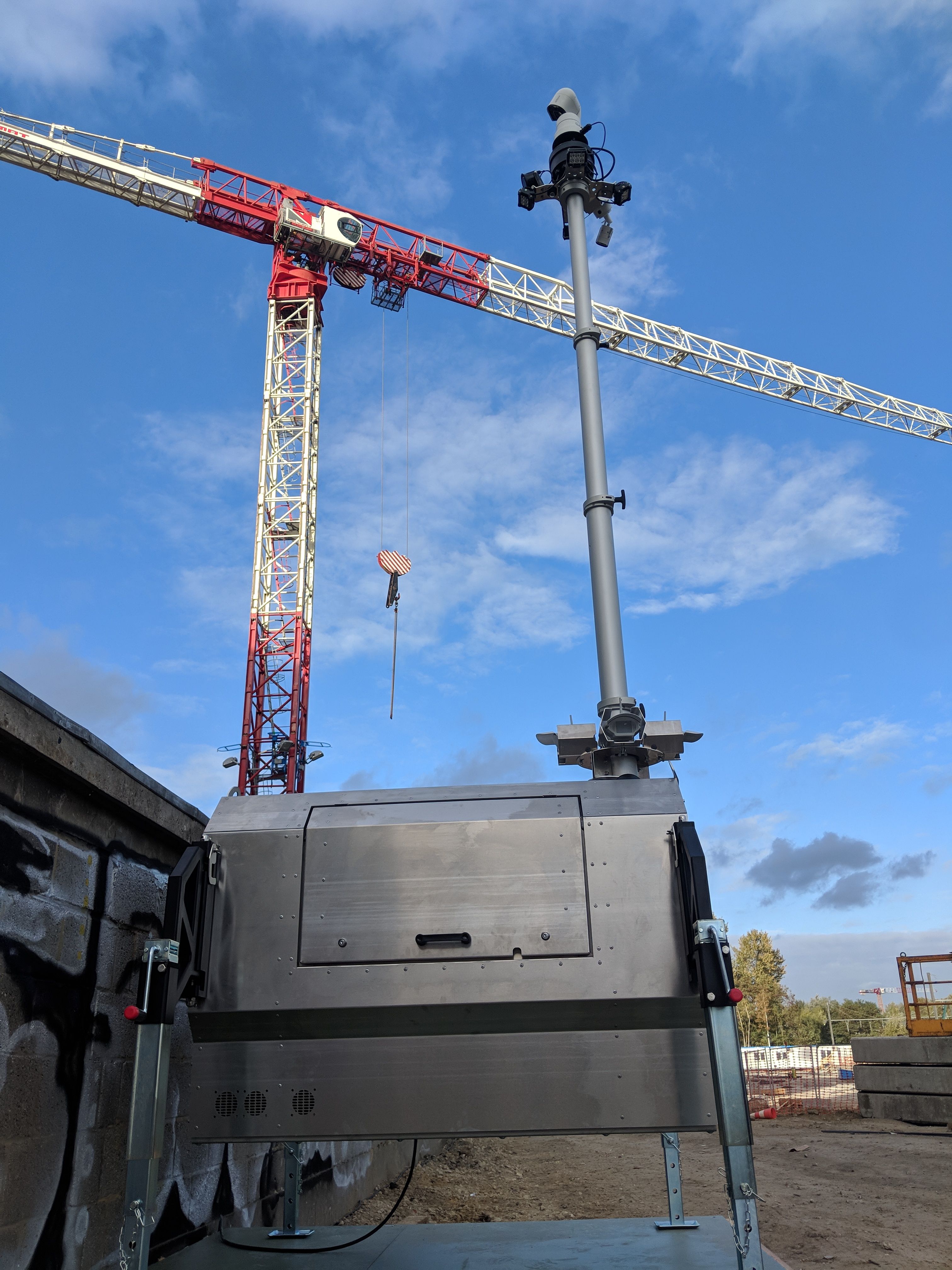

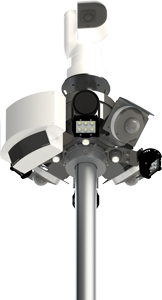

Mast & Cameras

  • Pneumatic mast with locking system (5m, 7m and 10m)
  • Compatible with all IP cameras (up to 5 cameras)
  • 4 integrated motion detectors
  • Radar detector
  • 4 programmable Led floodlights (up to 4x3000 lumen)
  • Dual color programmable flash light/strobe

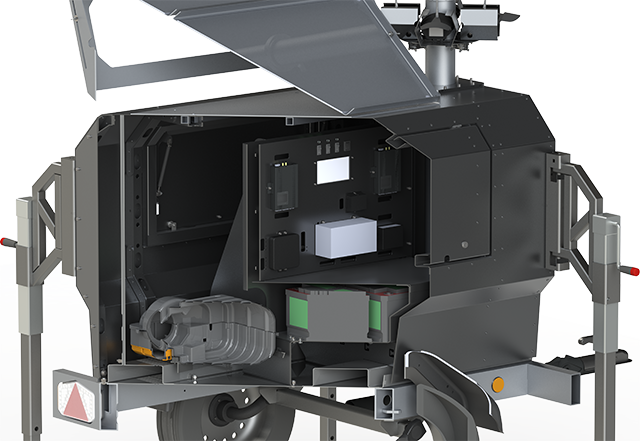

Electronics

  • Easy control with touchscreen 7” display
  • On board NVR (SSD and USB storage support)
  • Internal modem (Voice + SMS)
  • Dual Sim LTE modem with WiFi and Ethernet

Features & Options

  • Rust free modular aluminium body
  • Removable feet
  • Pneumatic mast with locking system (up to 10 meters)
  • 110/240V AC smart charger
  • 300aH battery pack with low voltage protection
  • LPG low noise generator 51dBA (up to 4 week autonomy)
  • Solar panels 220W (autonomous power & increase autonomy)
  • Fuel cell ready (up to 8 weeks autonomy)
  • Optional wind turbine (400W)
  • Integrated 12V to 48V step up converter (for additional PoE Devices)
  • Easy control with touchscreen 7” display
  • Compatible with all IP cameras (up to 5 cameras)
  • On board NVR (SSD and USB storage support)
  • 4 integrated motion detectors (30x20meter)
  • Additional wireless motion detectors (30x20m or 40x4m) or Radars (120 degree horizontal coverage)
  • Loudspeaker (GSM or IP calls)
  • 4 programmable Led floodlights (up to 4x3000 lumen)
  • Dual color programmable flash light
  • Time lapse and web streaming (YouTube and embedded video)
  • Dual GPS receiver (Geo-Fence and tracking)
  • Shock sensor
  • Door tampers
  • Internal modem (Voice + SMS)
  • Dual Sim LTE modem (Wi-Fi access point and Wi-Fi Wan support)
  • Secured VPN access (L2TP, IPsec, GRE Tunnel, PPTP)
  • Cloud based video surveillance platform
  • Additional Digital inputs, Analog inputs, RS232, RS485 and I2C ports for custom development
  • SV-X software platform developed for different types of integrations: scheduled tasks, logs, mail, sms, voice calls. API support ...
